SkyPipe Wav Recorder

(Pro Edition Only)

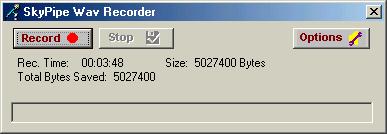

When collecting audio derived data via the sound card, it is sometimes desirable to capture the sound into a file so that it may be played back and listened to. To initiate the Wav Recorder panel select Wave / Wave Recorder from the main menu options across the top of the main SkyPipe window.

In versions 1.2.8 and above wav file recording can be triggered in four ways:

  1. Manually start a recording by pressing the record button.
  2. Set upper and/or lower chart threshold levels to trigger recording.
  3. Set up a timed recording.
  4. Set the  wav recorder to start each time a chart is started.

Most of the options associated with the wav recorder have to deal with these recording methods.  To set the options for the wav recorder click the Options button on the wav recorder panel.



Thresholds
Set this value to level which you thing signals a significant audio event.  For example, your chart may be riding along smoothly at a level of say 1000 and you believe that a significant solar burst would push the chart above 1200.  You would set the Upper Threshold to somewhere around the 1200 level.  When a burst did occur above that level the sound would be captured in a wav file.  In order to prevent false starts based upon transient noise, the program will usually ignore them. There is a compromise being made by the program in sensitivity to short events because of this. Lower threshold triggered recordings work in the same way but are triggered when the chart value dips below the Lower Threshold level.  To activate either form of threshold triggering you must check the checkbox associate with it.

Linger Time
Set linger time to let the program know how long to wait before ending the recording after the threshold is no longer being reached by the signal.  This prevents the recording from immediately dropping out when there is a brief dip in the signal level.

Prebuffer
The prebuffer allows you to grab several seconds of sound that passes through the sound card prior to when the recording is actually initiated.  The prebuffer feature only works when using the sound card as the Timing Source. The prebuffer data is not included in the calculations of the file duration and size.

Safeguard Settings

Wav file recordings are fast and take up less of your computers CPU time than many other formats which use complex compression schemes.  The downside is that wav files also take up a lot of room on your hard drive.  To prevent a continuous recording from accidentally eating up vast amounts of disk space (especially when unattended), I have included a couple of safeguard settings that limit the recording length of an individual file and of the total size of all wav files saved since the Wav Recorder was opened.  It is up to you to decide what these limits should be. Max Recording Length sets the limit of an individual file in seconds. Max Total File Size ( in MB) sets a limit on the total amount of disk space which is allowed to be consumed before the Wav Player refuses to record any more.

Under these limits you see checkbox options to restart the recorder after the limit is reached.  When these are selected you set a maximum file size or duration but there is no upper limit on the number if wav files produced and thus no safeguard against total disk usage.

Allow Multiple Triggered Recordings does just what it says. If you have this unchecked then the recorder goes into its locked state after a single threshold triggered recording has been made.

Scheduled Recording

Wav recording can be based on a preset time. Enter the the time you would like the recording to begin and end. The time you input should correspond to your choice of Universal Time or local Time for chart recording.  There is presently no provision for basing recording time on sidereal time.  If you would like the recording to occur at the same time every day, you can select the Repeat Timed Recording Daily box. To make the scheduled recording option active, you must have the Activate Timed Recording box selected. When you close the options panel, you will see any pending start or stop of a scheduled wav recording in the status bar of the wav recorder panel.

Automatically Start Wav Recorder when Chart Starts

This option does just what it says.  Each time you start a chart the wav file recorder will begin recording.

Use the Save button to save the options you have set so that they will be applied and automatically retrieved the next time you start the recorder.

Operating the Wav Recorder Buttons

To begin recording a wav file, press record. There are three options for stopping the recording:

  1. Press the Stop button to stop and save present recording.
  2. Press the Kill Rec button to stop the current recording without saving it. Note that once you press Kill Rec there is no way to save what you just recorded.
  3. Press Restart to re-initialize the current recording.  Everything recorded up to the point you press Restart will be erased and the recording will begin anew.

The Options button is not visible while you are recording. You must stop recording to change options.

Using the Quick Record Button

If you have the Pro version notice the small red dot button at the bottom of the button array on the main window.  This is quick access to the sound record function. When you press this the button graphic changes to the black square that indicates it is now used as a stop button.  The prebuffer is also used by this record process.
